What is a jigger machine?

How a Jigger Operates

You rely on a jigger dyeing machine to achieve uniform color on woven fabrics. The process begins with careful preparation. You must pre-treat the fabric to remove impurities and create a smooth surface. This step ensures that the dye will penetrate evenly. Next, you prepare the dye solution, selecting the right formula based on the fabric type and your desired results.

To operate a jigger dyeing machine, you follow a series of essential steps:

1.Fabric preparation: You pre-treat the fabric to eliminate oils, waxes, and other impurities.

2.Preparation of dye solution: You mix the dye solution according to the fabric’s requirements.

3.Setting of jigger dyeing process parameters: You adjust the temperature, dyeing time, and other key settings.

4.Roller dyeing process: You wind the fabric onto the dye shaft and control its movement through the dye tank.

5.Washing and post-treatment after dyeing: You wash the fabric to remove any unfixed dyes and chemicals.

You use the jigger dyeing machine for batch dyeing, which means you process a set amount of fabric at a time. This method gives you precise control over the dyeing conditions. You can adjust the temperature, tension, and speed to match the needs of each batch. The jigger dyeing machine also supports exhaust dyeing, where the dye transfers from the solution to the fabric until the desired shade is reached.

Fabric Movement and Dye Bath Process

The movement of fabric through the dye bath is the heart of jigger dyeing. You load the fabric in open width onto rollers. The jigger moves the fabric back and forth through the dye bath, ensuring every part of the fabric contacts the dye solution. This reciprocating motion is key to achieving even color.

The dye transfer process in a jigger dyeing machine relies on several scientific principles:

1.The amount of dye liquor held in the spaces between the fabric threads.

2.The exhaustion of this liquor during the time the fabric rests between passes through the dye bath.

3.The degree of mixing and exchange of dye liquor during each immersion.

You can see how the jigger dyeing machine ensures uniform dye penetration in the table below:

Feature	Explanation
Reciprocating Motion	The fabric moves back and forth through the dye bath, ensuring uniform contact with the dye.
Precise Control of Parameters	You set temperature, tension, and speed for consistent dyeing conditions and even penetration.
Effective Pre-treatment	You remove impurities before dyeing, which helps the fabric absorb dye evenly.

Tip: Always monitor the tension and speed during jigger dyeing. Proper control prevents fabric damage and ensures the best color results.

You use the jigger dyeing machine for a wide range of woven fabrics. The process gives you deep, consistent color and works well for both standard and delicate materials. By mastering the movement and dye bath process, you achieve high-quality results in every batch.

Jigger Dyeing Machine Features

Key Components

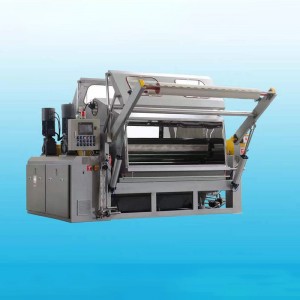

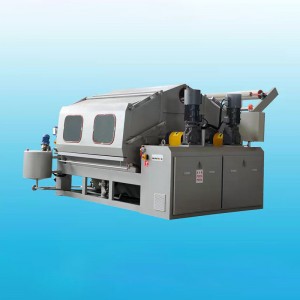

You rely on the jigger dyeing machine for precise and efficient batch dyeing. The main mechanical components work together to deliver consistent results in every cycle. The Double Frequency Converter Jig Dyeing Machine includes advanced parts that enhance both performance and durability. Here is a table that outlines the essential components and their functions:

Component	Function
Inspection Window	Lets you visually monitor the process and reduces heat loss.
Liquor Trough	Maintains a stable liquor-to-dye ratio for efficient small-batch dyeing.
Trough Cooling Jacket	Allows you to control temperature with manual valves for precise dyeing conditions.
Main Rollers	Support fabric immersion and enable speed adjustments for different fabric types.
Heating	Electric heaters ensure uniform heating of dye liquor.
Temperature Measurement	PT100 sensors provide accurate, real-time temperature monitoring.
Fabric Tension	Mechanical system keeps fabric tension steady for uniform dyeing.
Agitation	Mixer distributes dye liquor evenly for consistent color.
Floor Mounted Stand	Offers stability and durability during operation.
Tools & Accessories	Help you with operation, maintenance, and cleaning.

You benefit from the use of high-quality stainless steel in the Double Frequency Converter Jig Dyeing Machine. Stainless steel resists chemical erosion and physical wear, which extends the life of your equipment. The machine uses 316L and 304 stainless steel for dyeing tanks and rollers, ensuring durability and safety. You can trust these materials to withstand the demands of continuous jigger dyeing.

Advanced Controls and Automation

Modern jigger dyeing machines offer advanced controls that make your job easier and more efficient. The Double Frequency Converter Jig Dyeing Machine features dual frequency converter control, which lets you adjust speed and tension with precision. You interact with a programmable operation screen that stores technology settings, identifies processes automatically, and provides alarms for safety.

You can switch between manual and automatic modes, giving you flexibility for different batch dyeing requirements. The programmable logic controller allows you to set exact parameters for temperature, tension, and speed. You experiment with various dye formulations and processes, knowing that the machine will deliver consistent results. Automation features, such as automatic head back, line recording, and swing functions, help you prevent mishaps and improve productivity.

Safety is a priority in every jigger dyeing machine. You find safety guards around moving parts, interlocks that stop the machine if guards are opened, and emergency stop buttons placed for quick access. These features protect you and your team during operation.

Technological advancements in jigger design include double variable frequency control, enhanced automation, improved material specifications, and closed-loop systems. You benefit from water-saving features and sustainable practices, which reduce waste and lower operating costs.

Note: Regular maintenance is essential for optimal performance. You should check steam pressure regulators, clean the machine after each batch, inspect water pipes daily, and grease roller bearings weekly. Monitoring motor RPM and ensuring smooth roller movement will help you maintain high-quality jigger dyeing results.

Temperature and Tension Management

You achieve superior dyeing results by managing temperature and tension throughout the jigger dyeing process. The Double Frequency Converter Jig Dyeing Machine offers automatic temperature control from 0 to 100℃, which ensures consistent dye penetration and color fixation. You use PT100 sensors for real-time monitoring, so you can adjust settings as needed.

Temperature management plays a critical role in jigger dyeing. The table below highlights its importance:

Aspect	Importance
Dye Diffusion	Temperature affects how well dye penetrates the fabric.
Fixation	Proper temperature ensures dye adheres to the fabric.
Reproducibility	Consistent temperature leads to uniform results across batches.

You must set the correct temperature for each dye type. Maintaining temperature throughout the process is essential for reproducible results. High temperature and pressure in the jigger facilitate deep and uniform dye penetration, especially in synthetic fabrics. You see vibrant colors with excellent wash and light fastness.

Tension management is just as important. You control fabric tension with a mechanical system and tension rollers. Accurate tension control reduces web breaks and increases productivity. You adjust tension for different fabrics to keep it stable during jigger dyeing, which improves uniformity and quality.

● Accurate tension control ensures higher fabric quality and fewer web breaks.

● The tension roller lets you adjust tension for each fabric type, maintaining stability and improving dye uniformity.

You use the jigger dyeing machine for both batch dyeing and exhaust dyeing. The combination of advanced controls, temperature management, and tension adjustment gives you reliable, high-quality results every time.Tip: Always monitor both temperature and tension during jigger dyeing. Consistent control prevents shade variation and fabric damage.
